2024 Farrleey TANNASON Series Sintered Filter Plate with Customizable Dimensions Modular Structure and Compact Design

Name: 2024 Farrleey TANNASON Series Sintered Filter Plate with Customizable Dimensions Modular Structure and Compact Design
Brand: Farrleey
Price: 50 USD

2024 Farrleey TANNASON Series Sintered Filter Plate with Customizable Dimensions Modular Structure and Compact Design Manufactures

Place of Origin : Guangdong, China

Brand Name : Farrleey

MOQ : 10

Price : $50-170

Model Number : Tannason

Certification : FDA, EN799, ISO16890

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000 pcs per month

Delivery Time : 14 working days

Packaging Details : Standard Export Packaging

Material : Galvanized Steel

Weight : 9 kg

Filter Area : 4.75 m2

Particle Size : 0.1 micron

Dust Efficiency : 99.99%

Use Temperature : ≤70°C (Conventional), ≤100°C (Modified)

Filter Material : Sintered PTFE Coated

Surface Treatment : Antistatic

Installation Type : Double-sided insert mounting ring

Filter Area Ratio : >2x larger than filter bag

Chemical Resistance : Yes

Self-lubrication : Yes

Washable : Yes

Silicon-free : Yes

Fiber Shedding : No

Contact Now

2024 Farrleey TANNASON Series Sintered Filter Plate with Customizable Dimensions Modular Structure and Compact Design

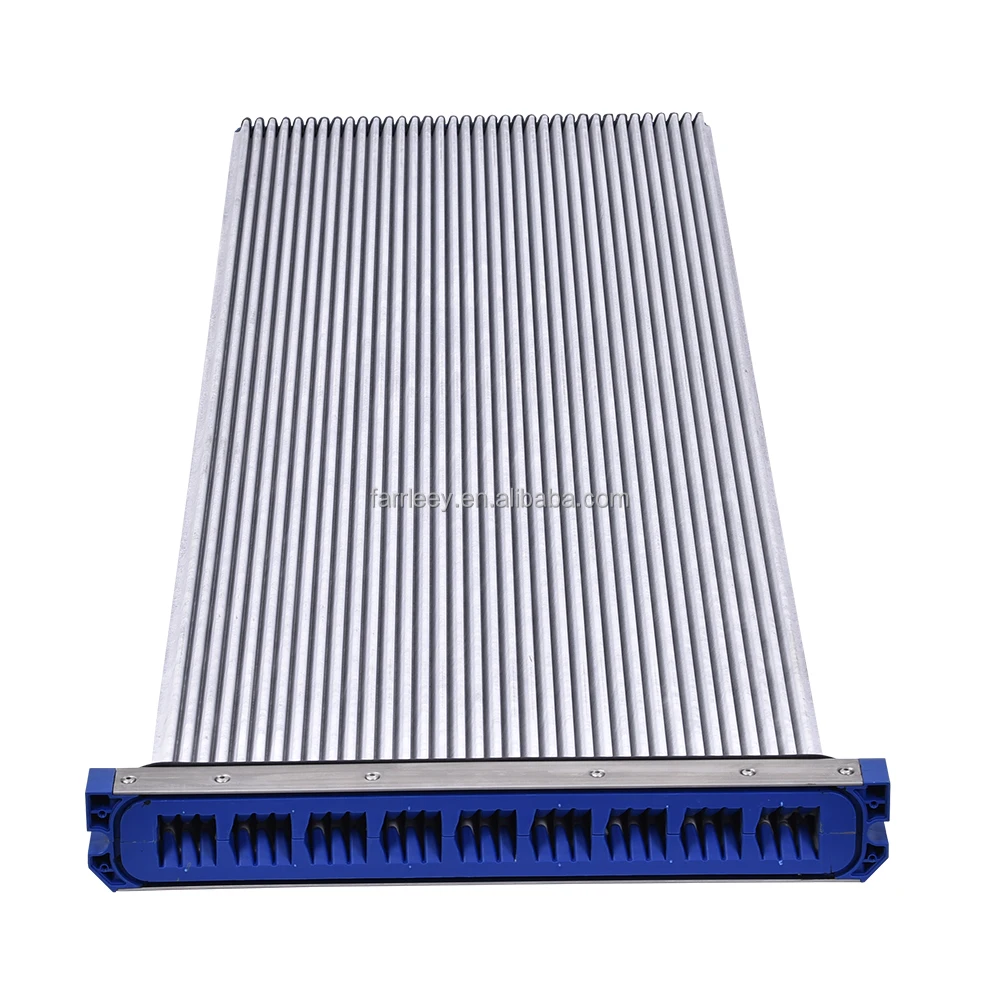

TANNASON® series flat frame folding filter plate is an innovative product with independent
intellectual property rights of Farrleey. The original design of the filter plate cavity backblowing structure ensures a higher
cleaning efficiency and greatly saves the amount of compressed air. The modular structure, which can be combined horizontally and vertically, can adapt to various complex installation environments; The compact arrangement of filter elements can greatly improve the utilization rate of space and save land resources.

Main application field

New energy/painting/tobacco/metallurgy/electronics/medicine

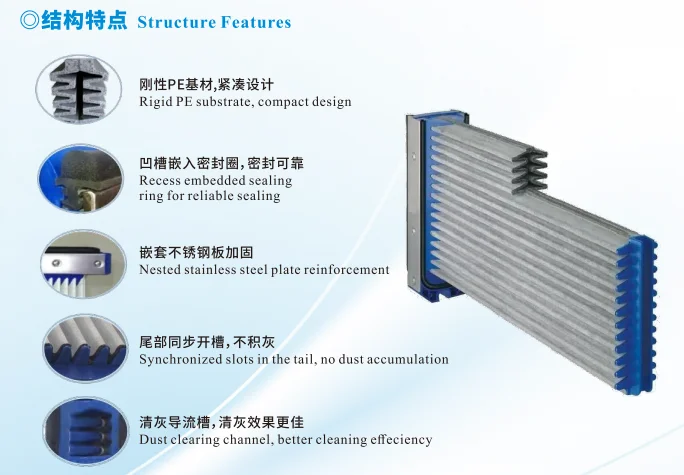

Product characteristics

Rigid substrate, sintered in one piece
Stable operation, long service life
Embedded energy-saving PTFE coating for high efficiency and low resistance
Can capture 0.1 micron particle size dust, dust removal efficiency of 99.99%
Double-sided insert mounting ring, optional up or down installation
Compact design of folds and ripples, filter area is more than 2 times larger than filter bag
Chemical resistance, self-lubrication, easy cleaning, strong wet resistance, washable
Silicon-free, no fiber shedding

Filter material selection

Imported raw materials sintered in one body.
Conventional filter material: the use temperature is less than or equal to 70 degrees.
Modified filter material: the use temperature is less than or equal to 100 degrees.
Surface PTFE coating.
Antistatic treatment.

Parameter for your reference

2024 Farrleey TANNASON series sintered filter plate with super long life service

Model	Diametion mm	Filter Area m2	Weight (Kg)	Note
BPX150560	564801504	4.75	15	Diametion and filter area can be customized
BPX100560	564801004	3.15	10
BPX155105	1050621555	9.0	25
BPX105105	1050621055	6.0	17

Q1. What is your product range? A: Our products include filter material, dust collector cartridge filter, filter bag and other accessories.

Q2. What kinds of filter material do you have? A: There are three standard types: spunbond polyester, needle felt and sythetic media. Please contact us for more details.

Q3. Can you advise the filter precision of the filter media? A: Yes, normal polyester is 5 micron, we can also offer you H13 grade media with PTFE membrane.

Q4. Is your product reached the food contact grade? A: Yes. We can offer you SGS certificate of raw material.

Q5. How about your delivery lead time? A: Generally, under MOQ quantity take 7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.

Q6. What is your sample policy? A: We can supply sample, but the customers have to pay the sample cost and the courier cost at first. Sample cost can be refunded if you place formal orders in the future.
